Sany Concrete Shotcrete Spraying Truck 30m3 Shotcrete Manipulator Machine SYM5171TPJ Concrete Sprayer for Mining Construction
8****.00 US excl. FRT
Product Description

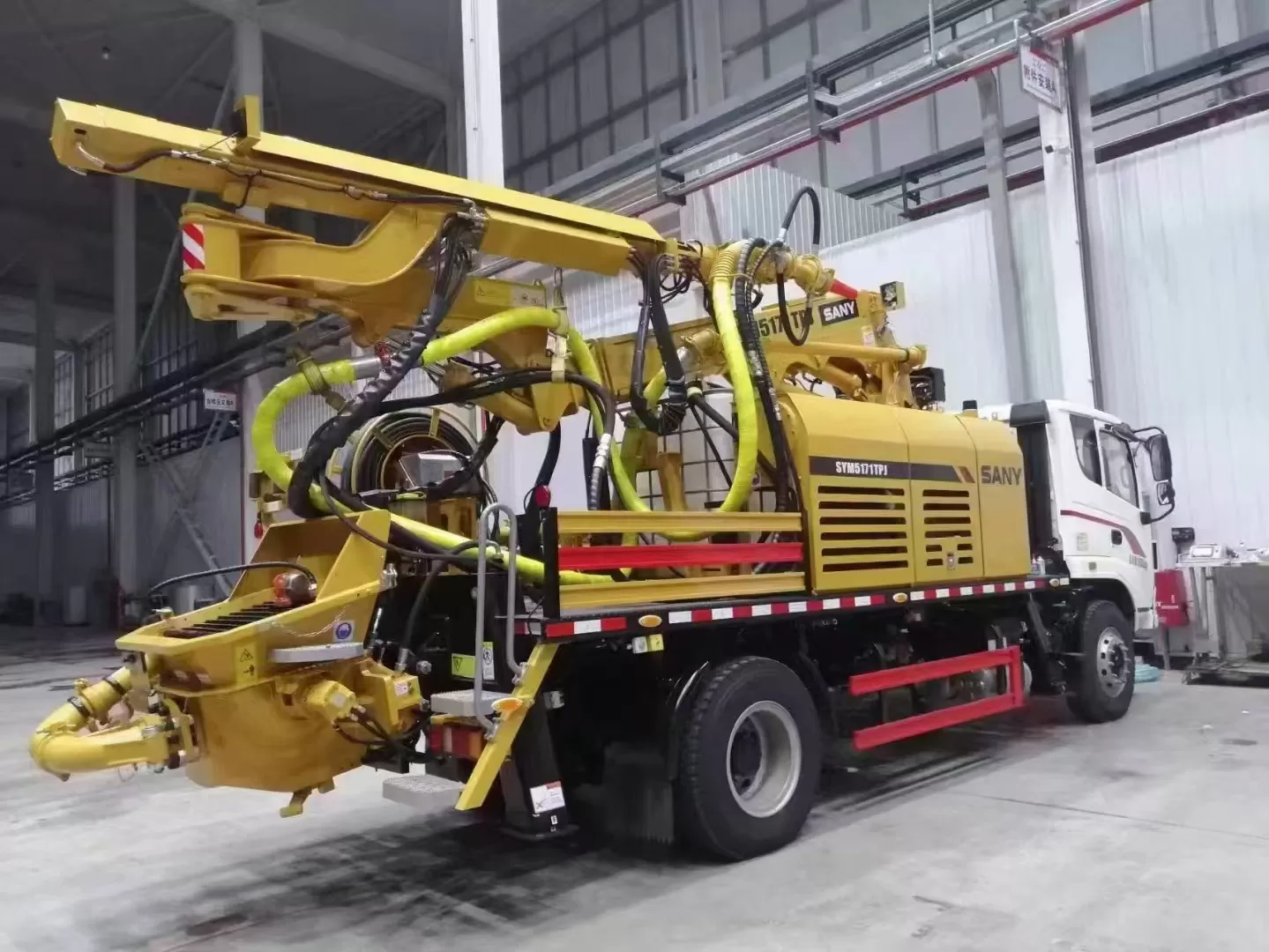

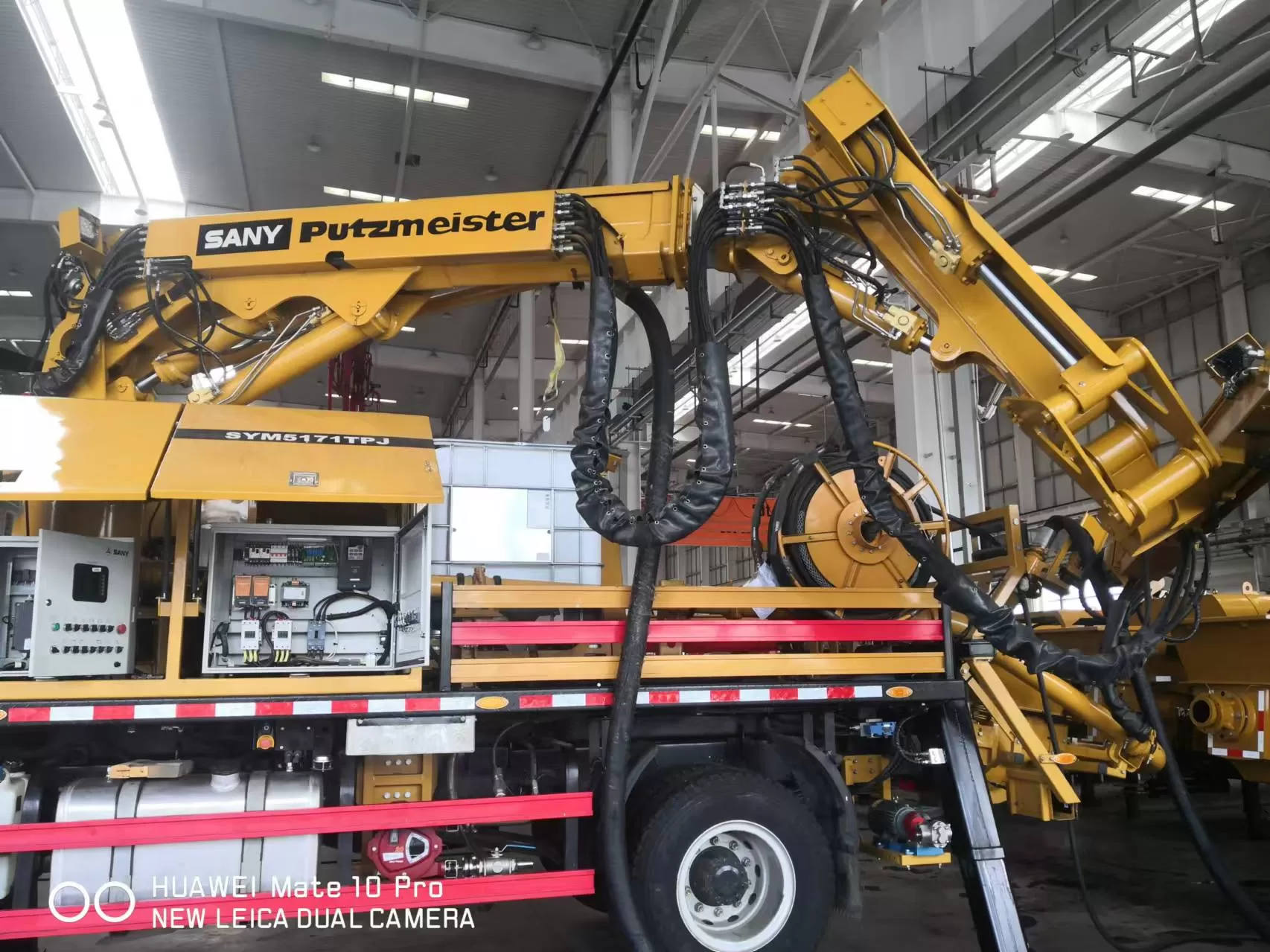

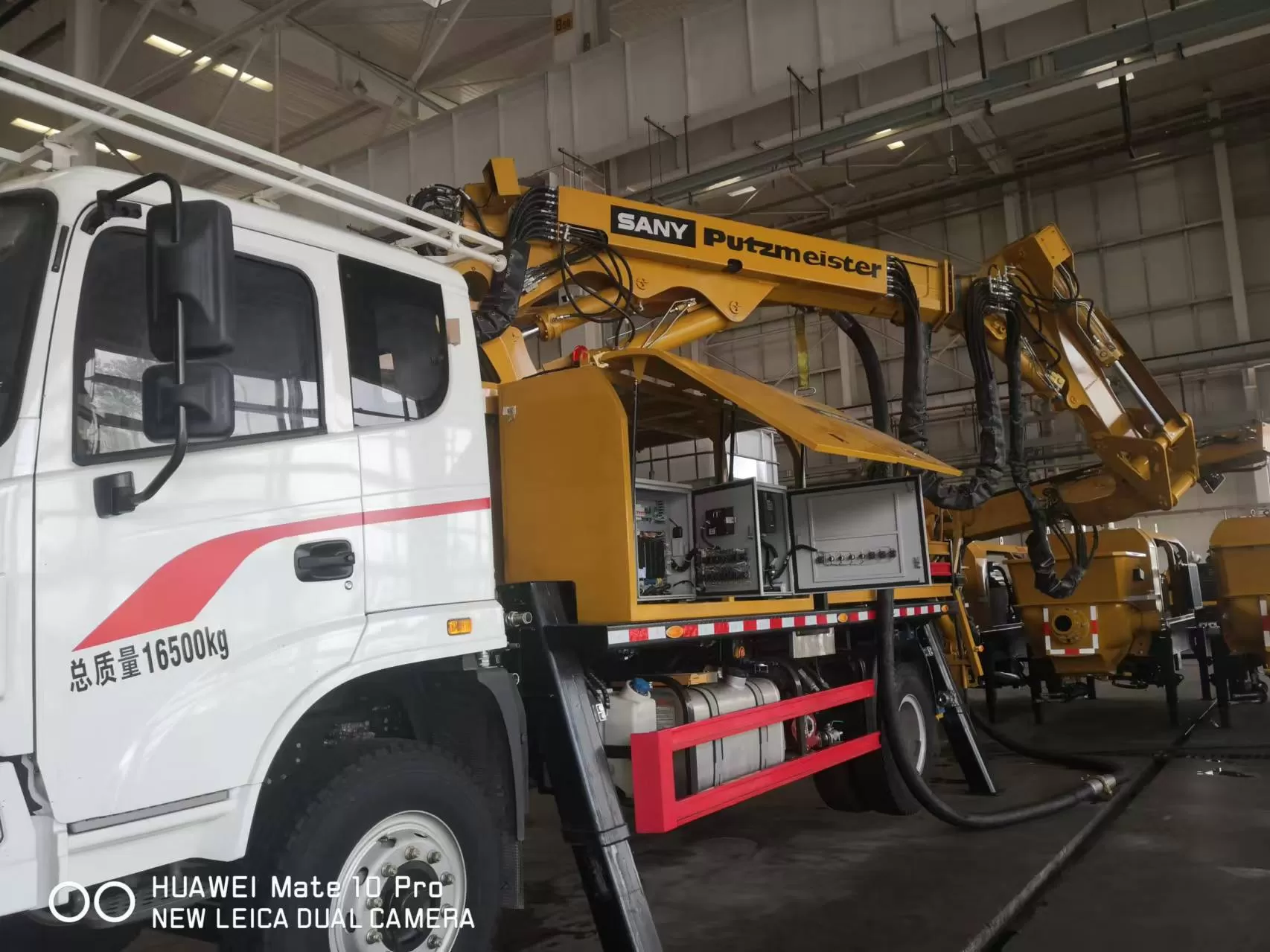

Sany Concrete Shotcrete Spraying Truck 30m3 Shotcrete Manipulator Machine SYM5171TPJ Concrete Sprayer for Mining Construction
Concrete shotcrete spraying truck is a kind of equipment used for spraying concrete. It can transport the concrete (wet material) mixed according to a certain mix ratio to the nozzle through a pumping system.
The nozzle uses compressed air to spray concrete at high speed onto the sprayed surface. During the spraying process, the concrete can be evenly distributed on the sprayed surface, and the spraying distance and range can be controlled by adjusting parameters such as the spraying pressure.
It is widely used in various construction projects.
Tunnel engineering
In the process of tunnel excavation, the concrete wet spraying machine is mainly used for initial support. It can spray a layer of concrete on the rock surface after tunnel excavation to form a support structure to prevent rock from falling and enhance the stability of the tunnel.
Underground engineering
Such as the construction of underground spaces such as underground parking lots and underground warehouses. In these projects, it is necessary to spray concrete on the top plate, side wall and other structures of the underground space. The wet spraying machine can spray concrete evenly onto the surface of the structure to ensure the strength and stability of the underground structure.
Slope protection engineering
For some high and steep slopes, in order to prevent geological disasters such as rock weathering, spalling and landslides on the slope surface, the concrete wet spraying machine can spray concrete on the slope surface to play a role in reinforcement and protection. At the same time, materials such as fiber can be added to the concrete to enhance the crack resistance of the slope protection.
Water Conservancy Project
In the construction and repair of water conservancy facilities such as water conservancy dams and channels, wet spraying machines can be used for concrete pouring. For example, the slope protection of the dam and the lining of the channel can be sprayed with wet spraying machines to make the concrete fit the slope and channel wall better and ensure the construction quality.
Brand |
SANY |
Type |
Concrete Shotcrete spraying truck |
Model |
SYM5171TPJ |
Manufacture Year |
2021 |
Overall Weight |
17000KG |
Maximum Spraying Capacity |
30m³/h |
Maximum Spraying Height |
17m |
Maximum Front Spraying Distance |
15m |
Maximum Pumping Pressure |
8 mpa |
